M 20 C Propulsion

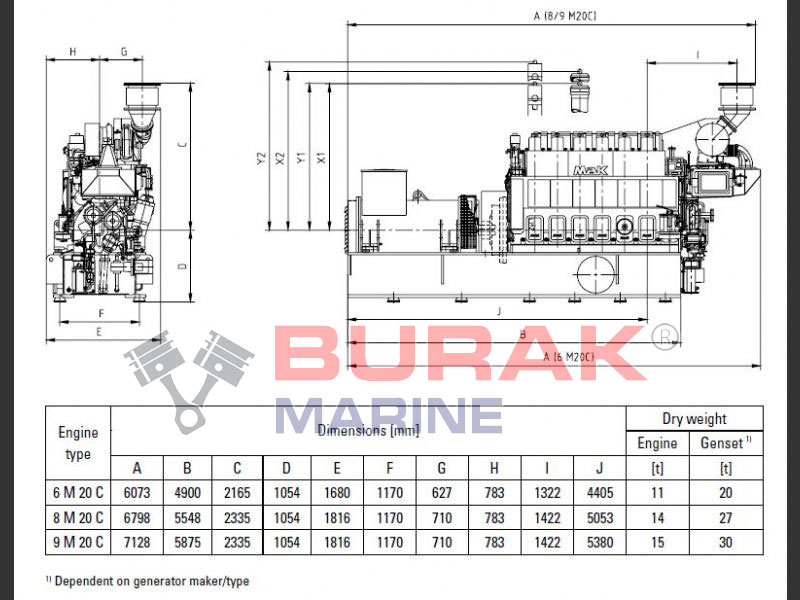

Introduced in 1992 the M20 engine is the smallest MaK engine of the engine programme with a bore of 200 mm and a stroke of 300 mm. This type is available as an inline version with 6, 8 and 9 cylinders. The output ranges from 1,020 kW (6M20C) to 1,710 kW (9M20C) at 900 and 1,000 revolutions per minute.

For more information about the M20 download following documents or visit www.marine.cat.com.

Quick Facts

• kW

  1020 - 1710

• rpm

  900 - 1000

• bore

  200

• stroke

  300

• g/kW

  186 - 190
